V26 Solar GPS Tracker
Model: V26 / 4G LTE Cat.1 + Solar
Charges itself
A high-efficiency 6V solar panel keeps the 7,500 mAh pack topped up in the field.
Two-metre accuracy
Multi-constellation GNSS with AGPS pins assets down to under two metres CEP.
Years between visits
Deep power saving delivers roughly three years at two reports per day.
Certified and sealed
IP67 housing with CE, FCC and UKCA approvals for global deployments.
Share this product
Product Overview
The V26 is a 4G solar-powered tracker equipped with high-efficiency solar panels for continuous charging and powerful magnets for discreet long-term deployment. A 7,500 mAh battery, IP67 housing and multi-constellation GNSS with under two metre accuracy protect containers, trailers and high-value assets for years.

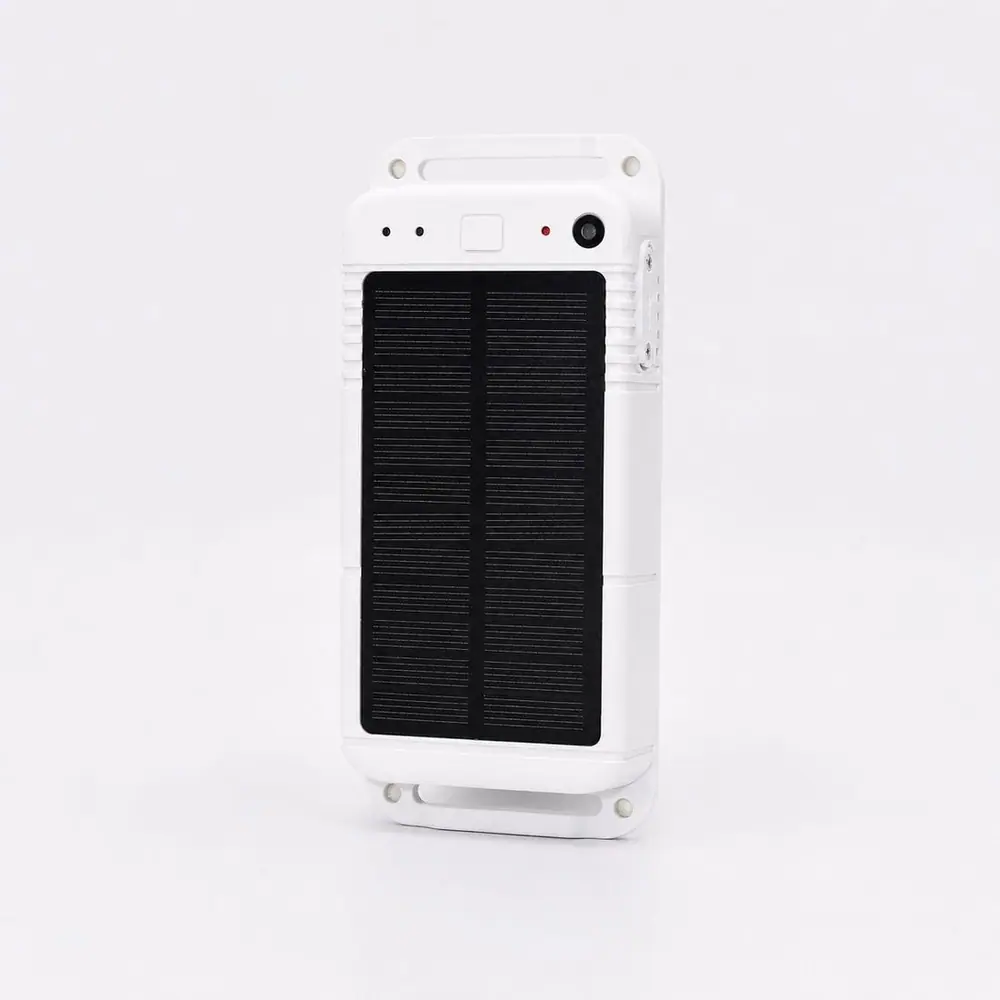

Power from the sun
An integrated solar panel and strong magnets enable truly set-and-forget outdoor installs.
Match the mode
Switch between tracking, smart saving and deep saving to balance detail against battery life.
Protect big assets
Containers, trailers and construction equipment stay visible for years without a service visit.
Principais recursos
Especificações
| Network | 4G Cat.1 |
| 4G STD Band | B1/B2/B3/B5/B7/B8/B20/B28/B66(B4)/B38/B41 (optional) |
| 4G NA Band | B2/B5/B12/B17/B13/B66(B4)/B38/B41 (optional) |
| GNSS Technology | GPS / Galileo / BeiDou / GLONASS |
| Position Accuracy | < 2.0 m CEP |
| Tracking Sensitivity | -165 dBm |
| Capture Sensitivity | -159 dBm |
| Hot Start | < 1 s |
| Cold Start | < 24 s |
| Battery Capacity | 3.7V 7,500 mAh lithium |
| Charging Input | Solar panel 6V 90 mA (max); Type-C DC 5V |
| Power Consumption | 90 μA deep saving / 0.8 mA smart saving / 19 mA tracking |
| Battery Life | Deep saving ~3 years @2 data/day; smart saving ~80 days @2h/day; tracking ~10 days |
| Working Modes | Tracking / Smart Power Saving / Deep Power Saving |
| Ingress Protection | IP67 |
| Product Dimensions | 157 x 70 x 26.5 mm |
| Weight | 310 g |
| Data Storage | Up to 10,000 entries (optional flash) |
| Configuration Support | Configurator, FOTA WEB, SMS, platform |
| Working Temperature | -25°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Certification | CE, FCC, UKCA |
| Interface | Micro-SIM, Type-C |
Application Scenarios
See how the A3 4G wired GPS tracker delivers value across industries.
Solar on container
Sunlight keeps the tracker charged on top of a container.
Equipment protection
Guard bulldozers and plant machinery on remote sites.
Cargo recovery
Locate and recover a misplaced trailer quickly.
Long-term parking
Keep working through months of outdoor storage.
RF indoor locating
Find assets inside enclosed warehouses where GNSS fails.
Fleet monitoring
Track solar devices and battery levels across a map.
