A3 Wired GPS Tracker (8PIN)
Model: A3-8P / 4G LTE Cat.1
Anti-Detection Standby
Configurable hibernation with 1-30 day standby for covert operation.
Wide Voltage 9-90V
Direct fit for cars, trucks, EVs and 24V commercial vehicles.
Multi-Layer Hardware Protection
ESD, surge, over-voltage and over-current protection built in.
OTA Remote Upgrade
Push firmware updates and configuration remotely over the air.
Share this product
Product Overview
Compact 4G wired GPS tracker with 9-wire harness. Engineered for leased and mortgaged vehicle management, fleet tracking, logistics and high-value asset monitoring.
Compact & Rugged Design
The A3 measures just 75 x 33 x 17 mm and weighs only 37 g, housed in a PC V0 flame-retardant shell. Its compact wired form factor hides easily behind the dashboard, making it ideal for covert leased-vehicle and high-value asset tracking deployments.

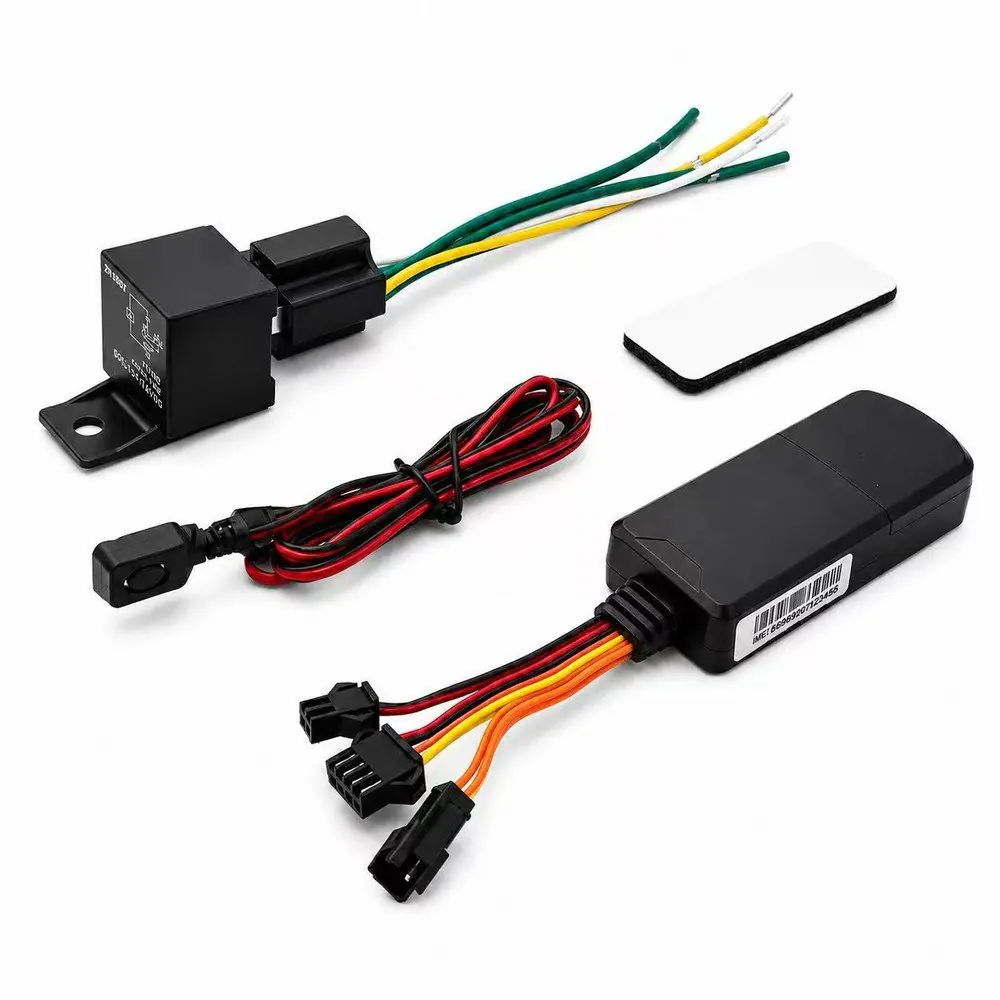

Complete 9-Wire Harness & Accessories
A ready-to-install 8PIN (9-wire) harness and built-in relay output let you cut fuel or ignition remotely. An optional SOS button supports emergency calls, while the wide 9-90V input fits cars, trucks, EVs and 24V commercial vehicles directly.
Proven in Real Fleet Operations
From logistics and cold-chain transport to auto finance and insurance telematics, the A3 is deployed worldwide for continuous vehicle visibility, electronic geofencing and driver-behavior monitoring — backed by the JHGP cloud tracking platform.
Key Features
Specifications
| Network | 4G LTE Cat.1 + 2G GSM |
| LTE Bands | B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 |
| Positioning | GPS + Beidou + LBS |
| Tracking Sensitivity | -159 dBm |
| Operating Voltage | DC 9-90V |
| Battery | 150 mAh built-in |
| Power Consumption | 4 mA sleep / 55 mA active @ 12V |
| SIM Card | Micro SIM |
| Accelerometer | 3-axis on-board |
| Memory | 5,000 records |
| Connector | 9 wires (8PIN harness) |
| Dimensions | 75 x 33 x 17 mm |
| Weight | 37 g |
| Operating Temperature | -25 C to +80 C |
| Shell Material | PC V0 flame-retardant |
| Hardware Protection | ESD / Surge / Over-voltage / Over-current |
Application Scenarios
See how the A3 4G wired GPS tracker delivers value across industries.
Leased & Mortgaged Vehicle Management
Keep financed and leased vehicles visible throughout the loan lifecycle with covert standby tracking and movement alerts.
Fixed-Asset & High-Value Tracking
Monitor valuable equipment and high-value goods with discreet installation and long-term, reliable positioning.
Logistics & Cold-Chain Transport
Track trucks, cargo and temperature-sensitive shipments in real time for end-to-end supply-chain visibility.
Stolen Vehicle Recovery
Locate and recover stolen vehicles quickly with live GPS position and historical route playback.
Insurance Telematics
Support usage-based insurance with driving-behavior analysis and verified vehicle location data.
Fleet Management
Improve utilization and safety across commercial fleets with real-time tracking, geofencing and driver scoring.
Need a Custom Configuration?
Talk to our engineers about OEM/ODM, volume pricing, or platform integration.
